Viewing Telemetry in the Web UI

Telemetry can also be shown in the browser-based Web UI while streaming video over Wi-Fi.

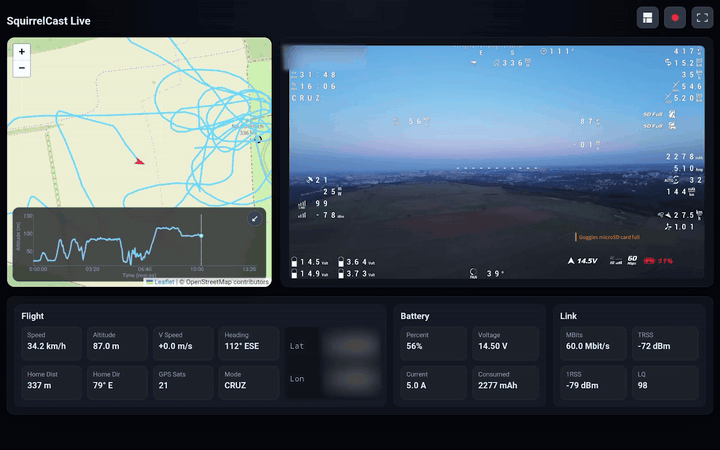

Web UI telemetry demo showing the browser map and telemetry overlays

Enable Web telemetry export

  1. Open Settings in SquirrelCast.
  2. Enable Web telemetry export.
  3. Start streaming video to a browser as described in Streaming Video Over Wi-Fi.

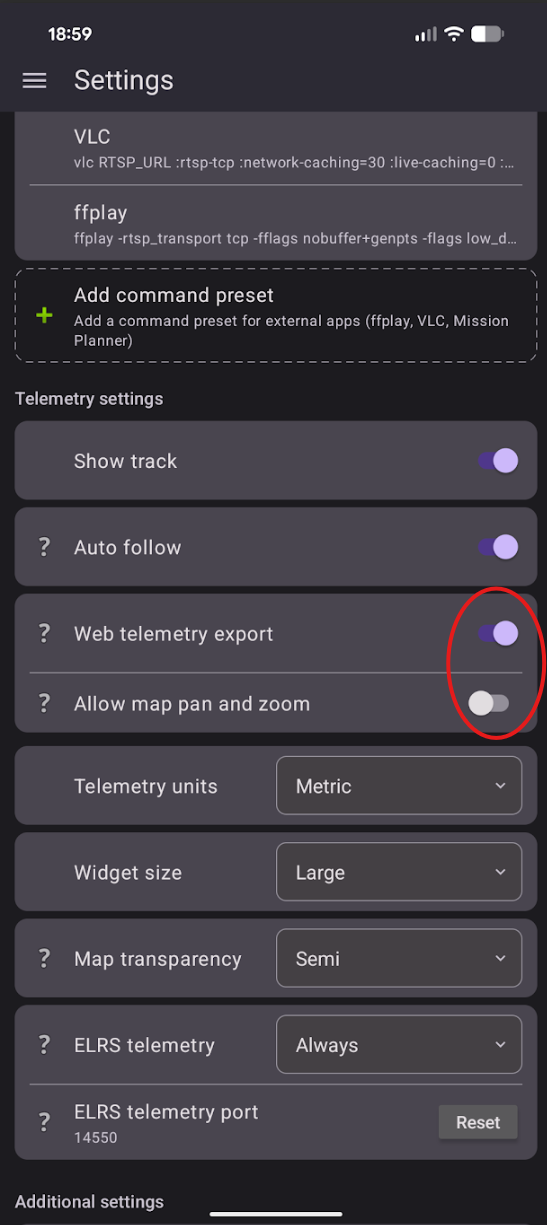

SquirrelCast settings showing the Web telemetry export option

When this setting is enabled, the Web UI can show telemetry overlays such as the map and certain stats together with the live video.

Telemetry export is independent of the current app tab. You can switch tabs, minimize the app, or lock the phone, and telemetry streaming will continue.

If the setting is disabled, the browser stream contains video only.

Warning: Showing telemetry in the Web UI can increase video lag, especially if the receiving device is sharing an internet connection with the phone. If low latency matters more than telemetry, leave Web telemetry export turned off.

Allow map pan and zoom

There is also a setting called Allow map pan and zoom.

By default, the map in the Web UI is fixed and follows the aircraft. If Allow map pan and zoom is enabled, the user can move and zoom the map manually in the browser.

This causes even more map loading, so it is even more likely to introduce video lag. It is best to test this in your own setup and only leave it enabled if the performance is still acceptable.
